ANT+ HR Monitor (Spivi account pairing)

If your members plan to use their own Heart Rate monitors, then you'll want to pair each HR monitor to your members' Spivi accounts.

Once a HR monitor has been paired with the member's Spivi account, then the system will automatically detect their HR data whenever they are logged into a workout. The pairing process only needs to be completed once per user.

• Download and install the Spivi Sensor Pairing app onto your front desk computer. (Mac/Windows)
• Connect the ANT+ USB stick to the front desk computer.
• Launch the Spivi Sensor Pairing app.
• Instruct the client to stand next to your front desk computer, turn ON their Heart Rate monitor and wear it. (You should only pair one HR monitor with Spivi at a time)

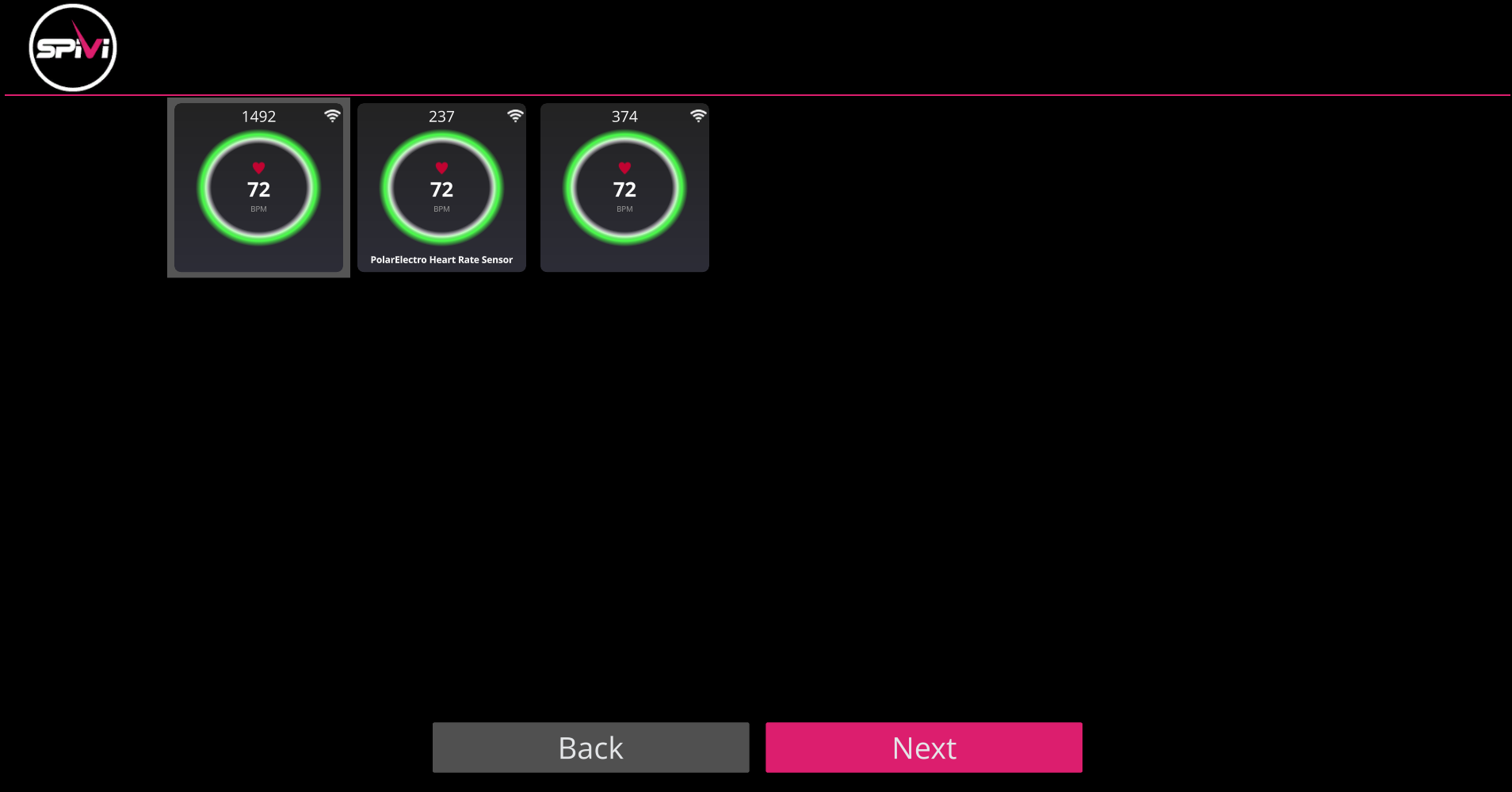

• Click Next on the Spivi Sensor Pairing app to scan for nearby active HR monitors.

• Click on the HR monitor from the list of devices, then click Next.

Please note: If you see more than one sensor listed here, try covering your HR monitor with your hand. The green circle should disappear indicating the correct HR sensor to pair.

• Pair the selected HR monitor using ONE of the options below:

  • Option A: Using the generated token:
    • Select the Token Auth option from the Spivi Pairing app.
    • Login to www.spivi.com with an administrator's account.

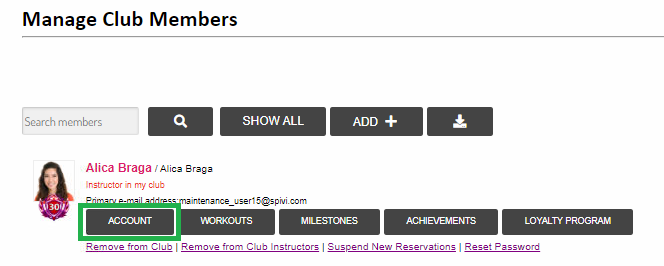

    • Navigate to the My Studio > Manage Club Members page.
    • Find the relevant member, then click the Account button.

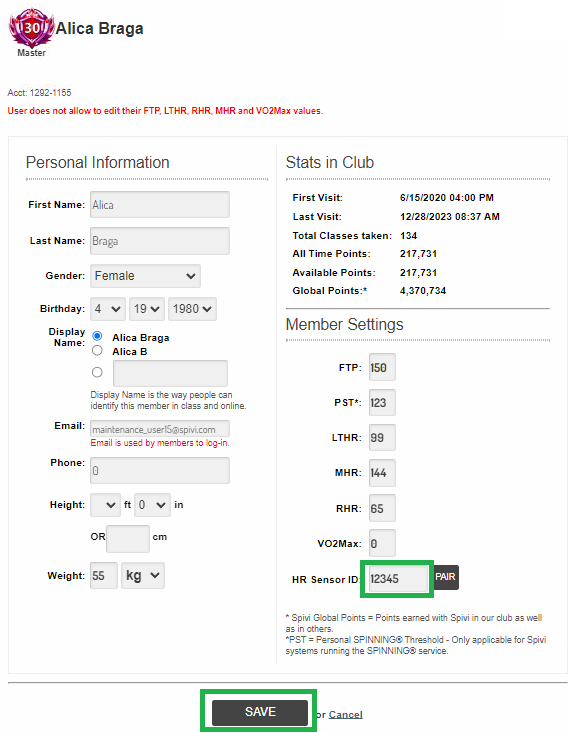

    • Click the Pair button next to the HR Sensor ID field.
    • Copy the token to the clipboard.
    • Paste the token into the Spivi Sensor Pairing app.
    • Click Next to complete the pairing process.
  • Option B: Using the member's email and password:
    • Select the Email Auth option from the Spivi Sensor Pairing app.
    • Let the member type the email and password of their Spivi account.
    • Click Next to complete the pairing process.

• • Option C: Manually enter the HR Sensor ID into the members' Spivi profile:
    • Take note of the unique identifier number of the selected HR monitor from the Spivi Sensor Pairing app.
    • Navigate to the My Studio > Manage Club Members page.
    • Find the relevant member, then click the Account button.
    • Type the unique identifier number into the HR Sensor ID field.
    • Click Save to complete the pairing process.
