ANT+ and BLE bikes and Treadmills (Maintenance Mode)

The system should automatically launch the maintenance mode for the system after activation. If you need to launch the maintenance mode manually, you can access it from the System Settings menu.

Prerequisites

1. The static fitness data receiver (ANT+ Antenna) is connected properly to the system according to the installation guide.
2. (Optional) The BLE dongle is connected properly to the system according to the installation guide. (This dongle is required for Kaiser m3i bikes)
3. All of the fitness equipment devices (bike consoles, power sensors, cadence sensors, heart rate monitors, etc.) are installed and working properly.
4. The training room has been set up for optimal fitness equipment signal quality.

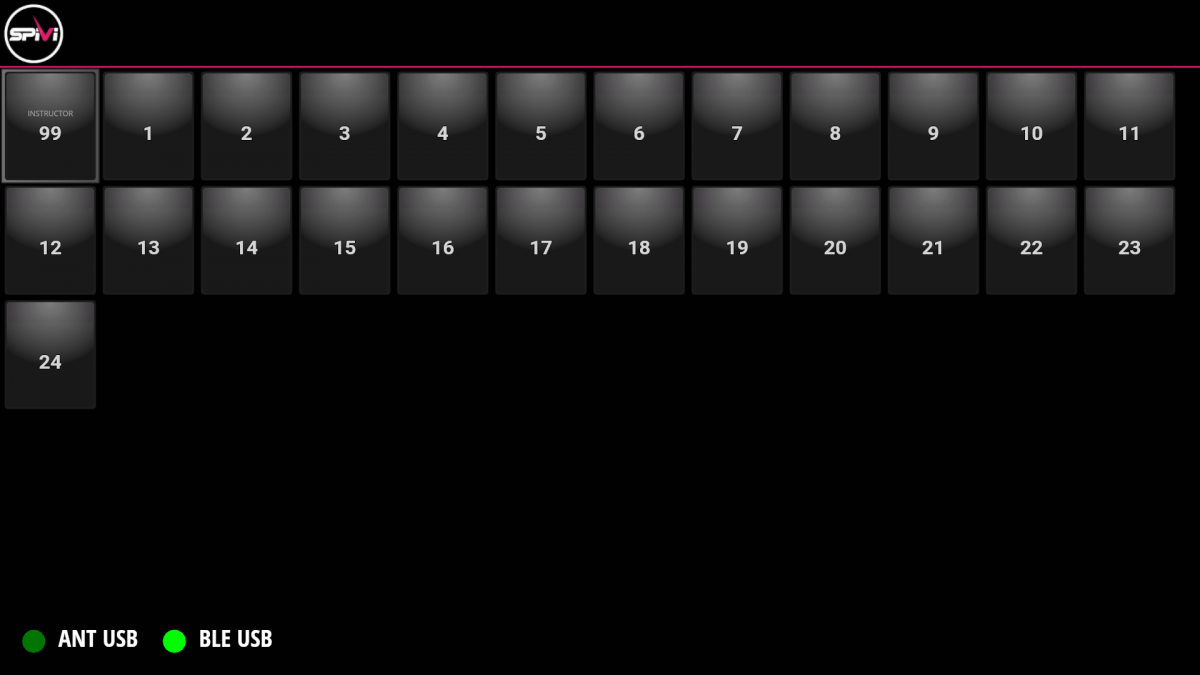

5. Look for the receiver status on the bottom area of the screen and make sure that your receivers are listed and functioning properly.

Bike Pairing

1. Use the directional pad on your Xbox controller, touchscreen, or phone (soft-controller) to highlight the spot you wish to pair, then press the Start button.
2. Activate the desired fitness equipment device you’d like to pair.
   • Indoor Cycling Bikes: Start pedaling the bike until the bike’s console starts to display performance data.
   • Heart Rate Monitors: Turn on the strap and wear it as usual.
3. Highlight the Pair option using the controller (xbox/touchscreen/soft-controller), then press the start button to confirm.
4. The system will try to automatically detect a single active fitness equipment device and pair it with the selected training spot.
5. In case the system detects multiple fitness equipment devices, it will display a list of all available devices, and let you manually select the device that you’d like to pair, by using the directional pad.
6. Repeat the above steps for each training spot you’d like to pair.
7. Save & Exit.

For each paired training spot, the system will display the number of paired devices, signal quality indicator and real-time fitness data (heart rate, power, cadence, etc.).

Treadmill Pairing

1. Use the directional pad on your Xbox controller, touchscreen, or phone (soft-controller) to highlight the spot you wish to pair, then press the Start button.
2. Activate the desired fitness equipment device you’d like to pair.
   • Treadmill: Press the Start button on the treadmill and wait for it to move and display performance data on its screen.
   • Heart Rate Monitors: Turn on the strap and wear it as usual.
3. Highlight the Pair option using the controller (xbox/touchscreen/soft-controller), then press the start button to confirm.
4. The system will try to automatically detect a single active fitness equipment device and pair it with the selected training spot.
5. In case the system detects multiple fitness equipment devices, it will display a list of all available devices, and let you manually select the device that you’d like to pair, by using the controller.
6. Repeat the above steps for each training spot you’d like to pair.
7. Save & Exit.

For each paired training spot, the system will display the number of paired devices, signal quality indicator and real-time fitness data (heart rate, power, speed, cadence, etc.).
